TB 9-4931-700-50
(17) Add algebraically values recorded in (15) and (16) above. Reverse sign and
add to 1.0. Record this value. This is the correct TI voltage control setting to obtain 1 V
output.
(19) Position TI controls as listed in (a) through (c) below:
(a) Press VOLTAGE RANGE 1 mV pushbutton.
(b) Set voltage controls to obtain indication of 1.000000 mv.

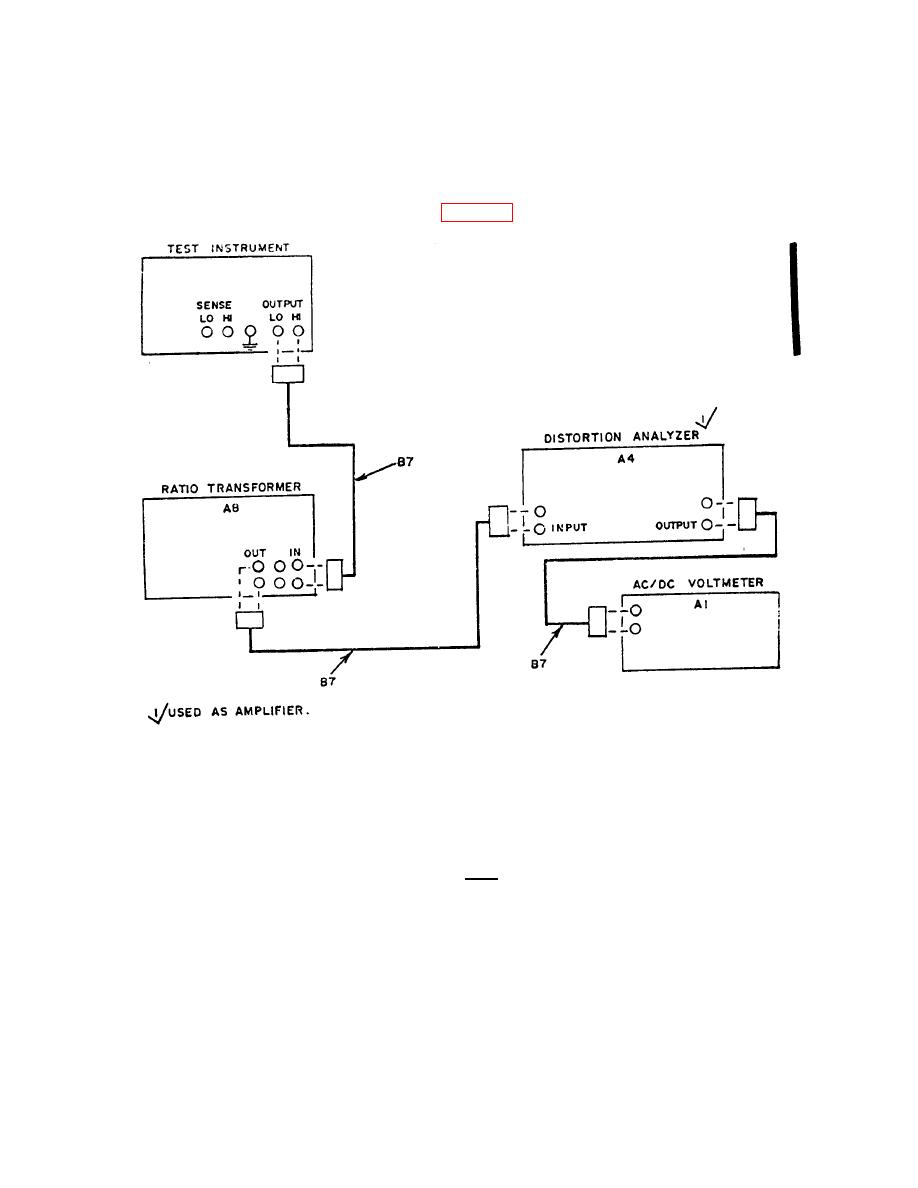

NOTE
In following checks, distortion analyzer (A4) is utilized as an
(21) Set distortion analyzer to voltmeter function and 1 mV (millivolt) range.
(22) Adjust ac/dc voltmeter (A1) dials to obtain null indication. Leave voltage
readout dials set.
17
