TB 9-6625-2239-35
C30
C32
C34
C36
C31
C33
C35
C37
C13010
C1690
R1685 R1882
C1643
R1735
R1634
R1335
R1482
C1192
R1190
C1342
R1135
R2325
*
(R2312)
C2315
*
(C2308)
C6002
C6015
C6041
*
10uS TIMING ADJ.
C2346
R2243
R2025
R2005
*
*
(C2350)
(R2245)
R6053
A SWP
CAL
R6052
B SWP
CAL
* BELOW SN B030000

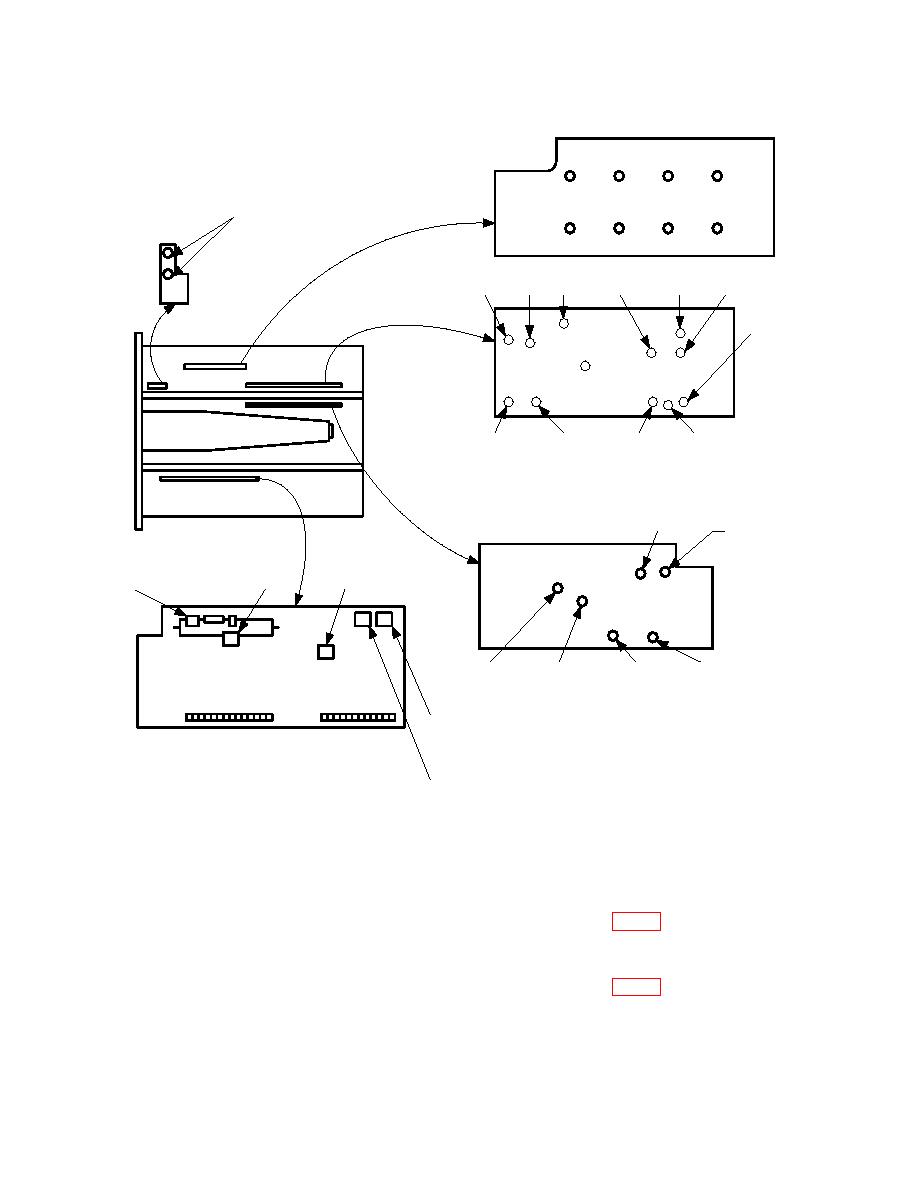

Figure 3. Tektronix, Type 465B with options top view.
(3) Rotate oscilloscope calibrator knob located below EDIT FIELD pushbutton to
adjust output for 0.0% indication on err display. Adjust R4443 (fig. 1) for 6 divisions of
vertical display (R).
(4) Rotate oscilloscope calibrator knob located below EDIT FIELD pushbutton to
adjust output for 0.0% indication on err display. Adjust R4272 (fig. 1) for 6 divisions of
vertical display (R).
9
