TB 9-6670-248-50
NOTE
A full beam indication of 100 pounds is used in this procedure
for simplicity. The method, however, can be utilized with a full
beam indication of other than 100 pounds by using applicable
weights.

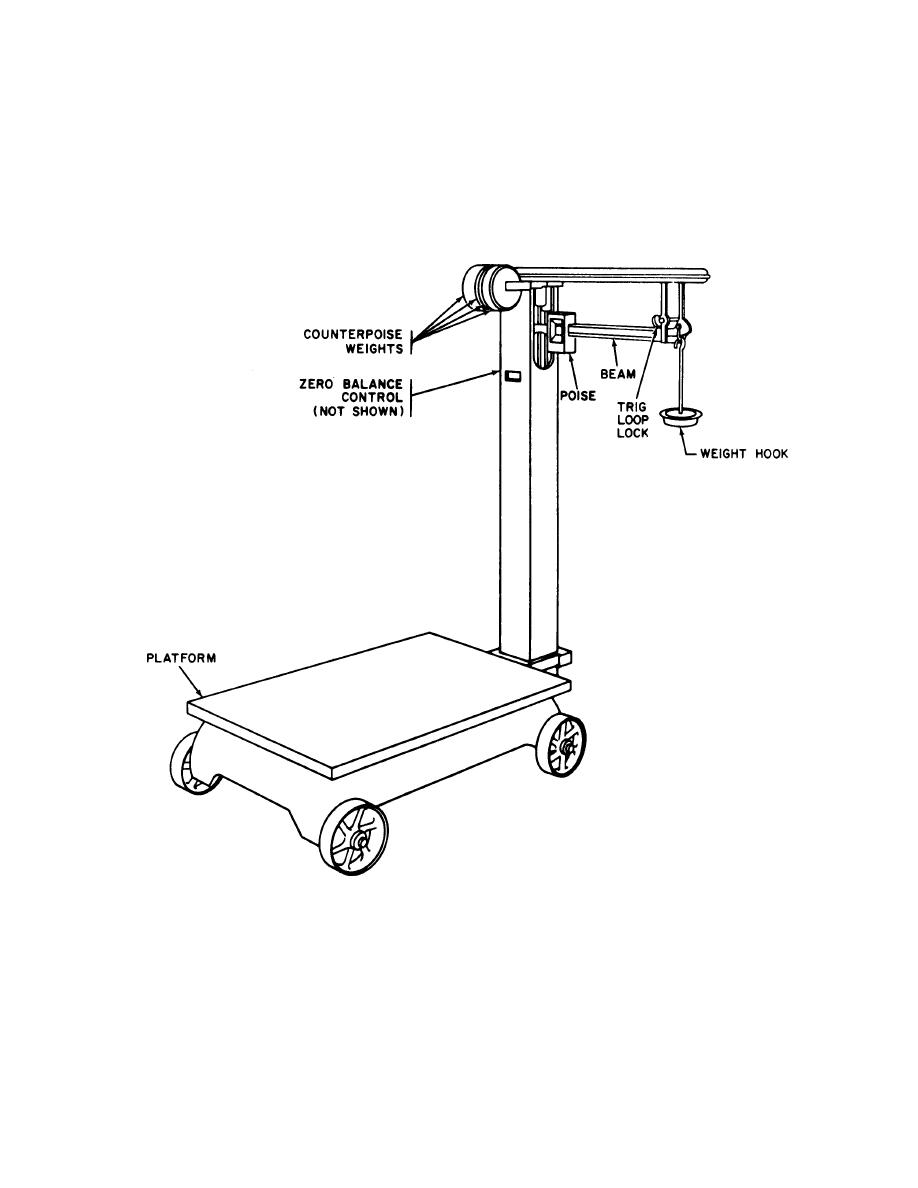

Figure 1. Beam indicating scale, type 1 (typical).
(2) Slide poise on beam until beam is in balance. Indication on beam will
correspond to known value, of standard weight within one-fourth pound or 1 beam
subdivision, whichever is larger.
4
