Table 5. D.C. Milliamp
Meter Calibrator Indication (MA)
Test Instrument Indication (MA)
Min
Max
200
175
225
300
275
325
400
375
425
500
475
525
12. Simulators (Temp and Sensor).
(1) Connect equipment as shown in figure 6. Check test leads resistance and record.
(2) Set the TEMPERATURE CONTROL SIMULATOR to 00100.0 on the test instrument.
(3) The voltmeter (A2) shall indicate within the limits specified in table 6, after substracting the lead resistance
recorded in (1) above.
(4) Repeat the above check for each of the test instrument TEMPERATURE CONTROL settings listed in table 6.
(5) Disconnect test leads from TP-31 and 32 and connect to TP-39 and 40.
(6) Set the SENSOR SIMULATOR to 00100.0 on the test instrument.
(7) Repeat steps (3) through 4 above, using SENSOR CONTROL settings in table 6.
b. Adjustments. No adjustments can be made.

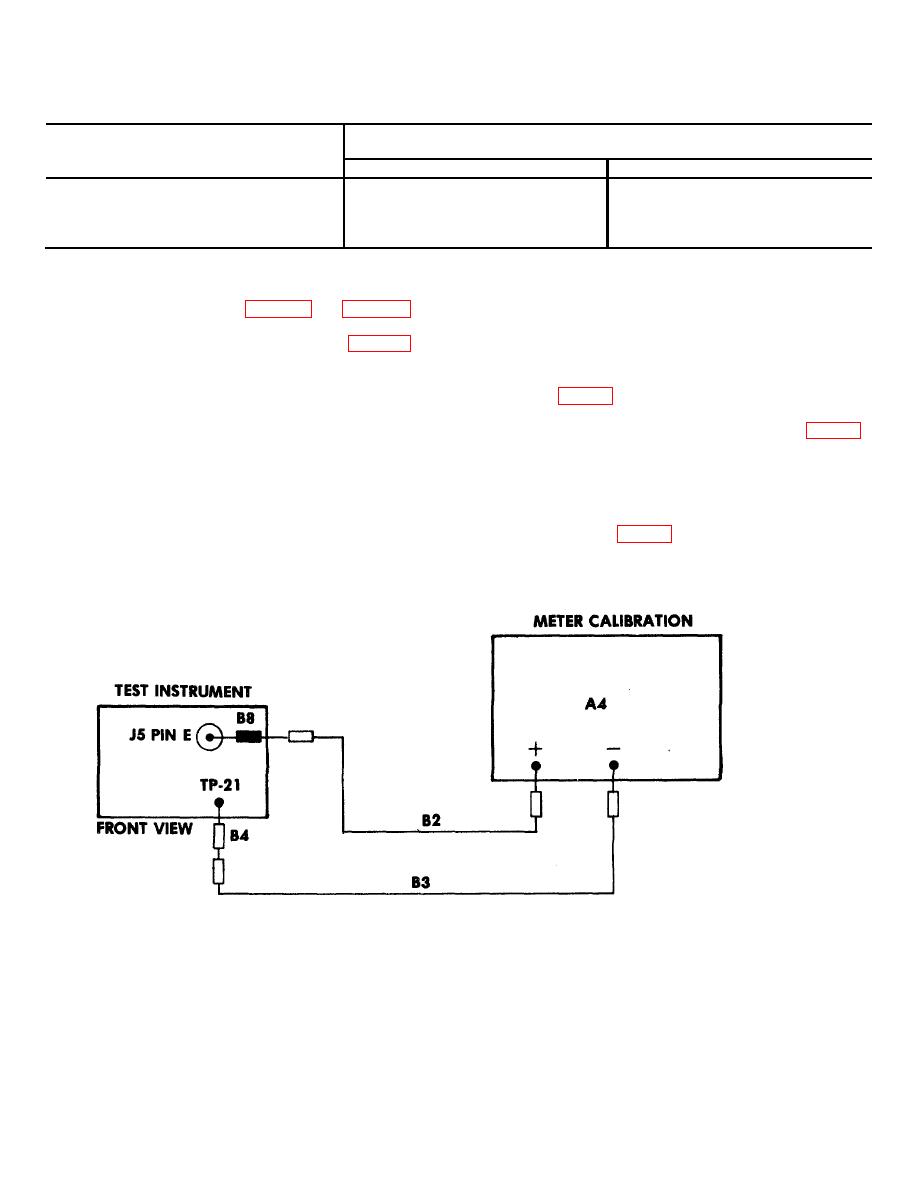

Figure 6. DC Milliamp Equipment Setup
