TB 9-5210-214-35

SECTION II

EQUIPMENT REQUIREMENT

4. Equipment Required. Table 2 identifies the specific equipment to be used in this

calibration procedure. This equipment is issued with Secondary Transfer Calibration

Standards Set AN/GSM-287 or AN/GSM-705. Alternate items may be used by the

calibrating activity. The items selected must be verified to perform satisfactorily prior

to use and must bear evidence of current calibration. The equipment must meet or

exceed the minimum use specifications listed in table 2. The accuracies listed in table 2

provide a four-to-one ratio between the standard and TI.

5. Accessories Required. The accessories used in this calibration procedure are

furnished with dial indicator calibrator (table 2).

Table 2. Minimum Specifications of Equipment Required.

Minimum use

Manufacturer, model and

specifications

part number

Common name

DIAL INDICATOR

Range: 0.0 to 1 in.

ITALL Model 700

Accuracy: 0.000021 in.

CALIBRATOR

(13534036)

Table 3. Accessories Required.

Common name

Description (part number)

Dial indicator mounting fixture

Model 11 (590-001-00) for style A

Dial indicator mounting fixture

Model 21 (590-002-00) for dovetail style

1See

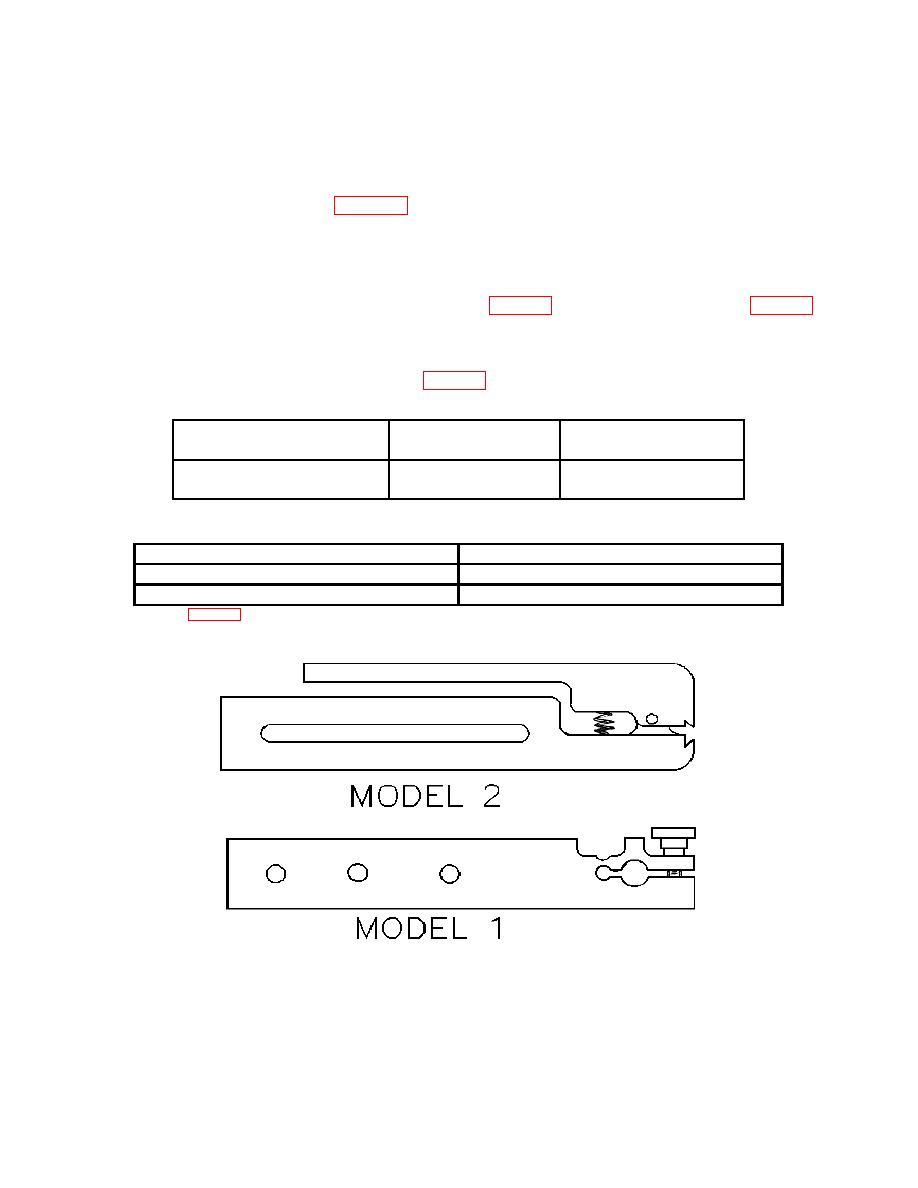

Figure 1. Mounting fixtures.
