RF power meter will indicate between 7.5 and 8.5 W.
(6) Repeat (4) and (5) above for 750, 400, and 200 MHz.
(7) Remove TI from wattmeter.
RF POWER AMPLIFIER
TI WATTMETER
50Ω
TERMINATION3
TI
LOAD
SOURCE
LOW PASS FILTER1
RF POWER METER2
1 SELECT
FROM TABLE 2 FOR FREQUENCY RANGE
2
SELECT SENSOR FOR FREQUENCY RANGE
SIGNAL GENERATOR
3 SUPPLIED WITH TI

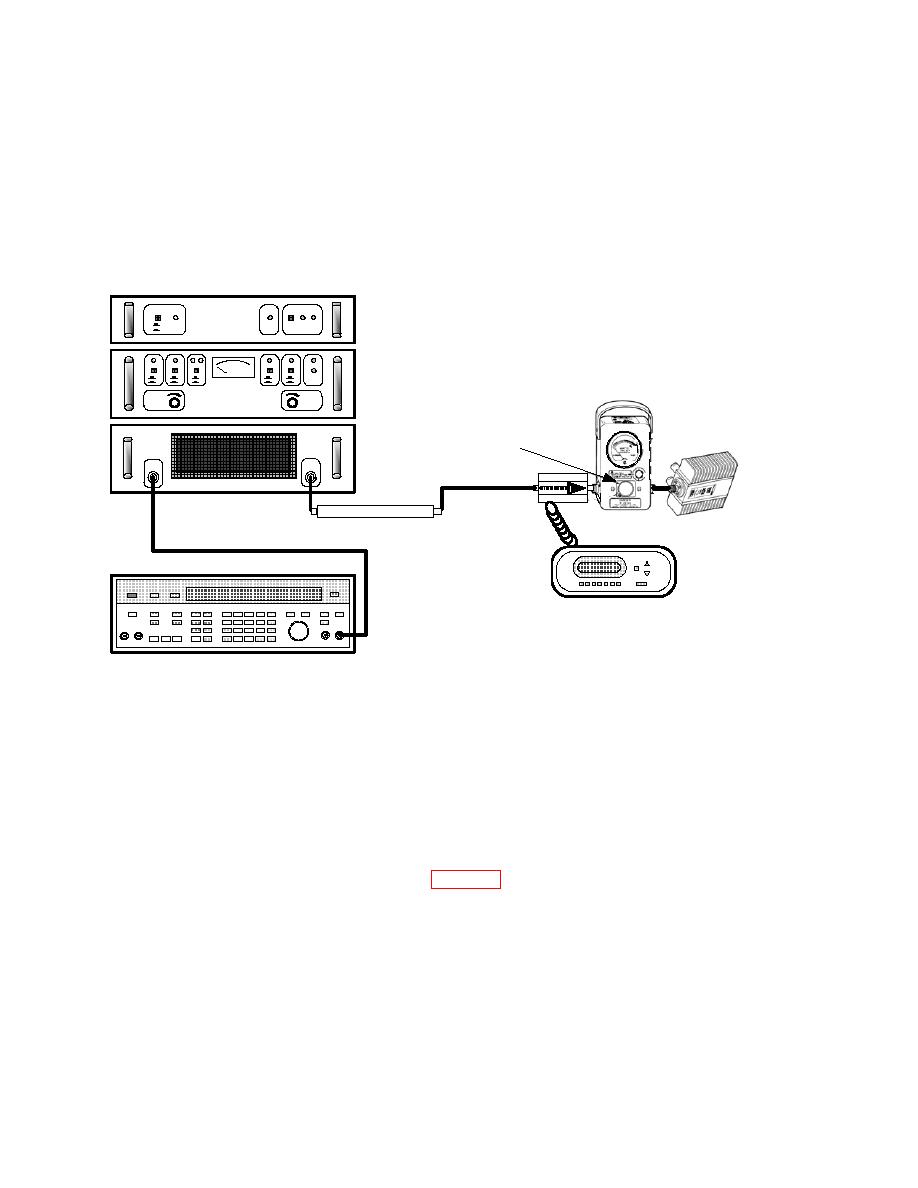

Figure 2. Plug-in element calibration - equipment setup.
a. Adjustments. No adjustments can be made.
10. Plug-in Element 4410-6
a. Performance Check
(1) Connect equipment as shown in figure 2.
(2) Insert TI into wattmeter and rotate TI until the arrow points in the direction of
50 Ω termination.
(3) Set factor switch to 1 position and allow equipment to warm up for 5 minutes.
of 200 MHz.
