TB 9-6625-2343-50
(a) BLUE.
(b) INSTR PRESET.
(c) MEASUREMENT AM.
(d) DETECTOR AVG.
(e) DISPLAY RATIO.
(f) LP FILTER >20 kHz.
(3) Connect TI sensor module to signal generator No. 1 RF OUTPUT.
percent AM at a 1 kHz rate.
(5) Adjust A2R44 >20kHz LPF GAIN (fig. 2) for a display of 99.95 to 100.05 percent (R).
(6) Press TI LP FILTER 15 kHz key.
(7) Adjust A2R40 15kHz LPF GAIN (fig. 2) for a display of 99.95 to 100.05 percent (R).
(8) Disconnect TI sensor module from signal generator No. 1 RF OUTPUT.
(9) Connect TI sensor module to TI CALIBRATION RF POWER OUTPUT.
(10) Press TI keys as listed in (a) through (d) below:
(a) BLUE.
(b) INSTR PRESET.
(c) 45.16, SPCL.
(d) 49. (BLUE) 1, SPCL.

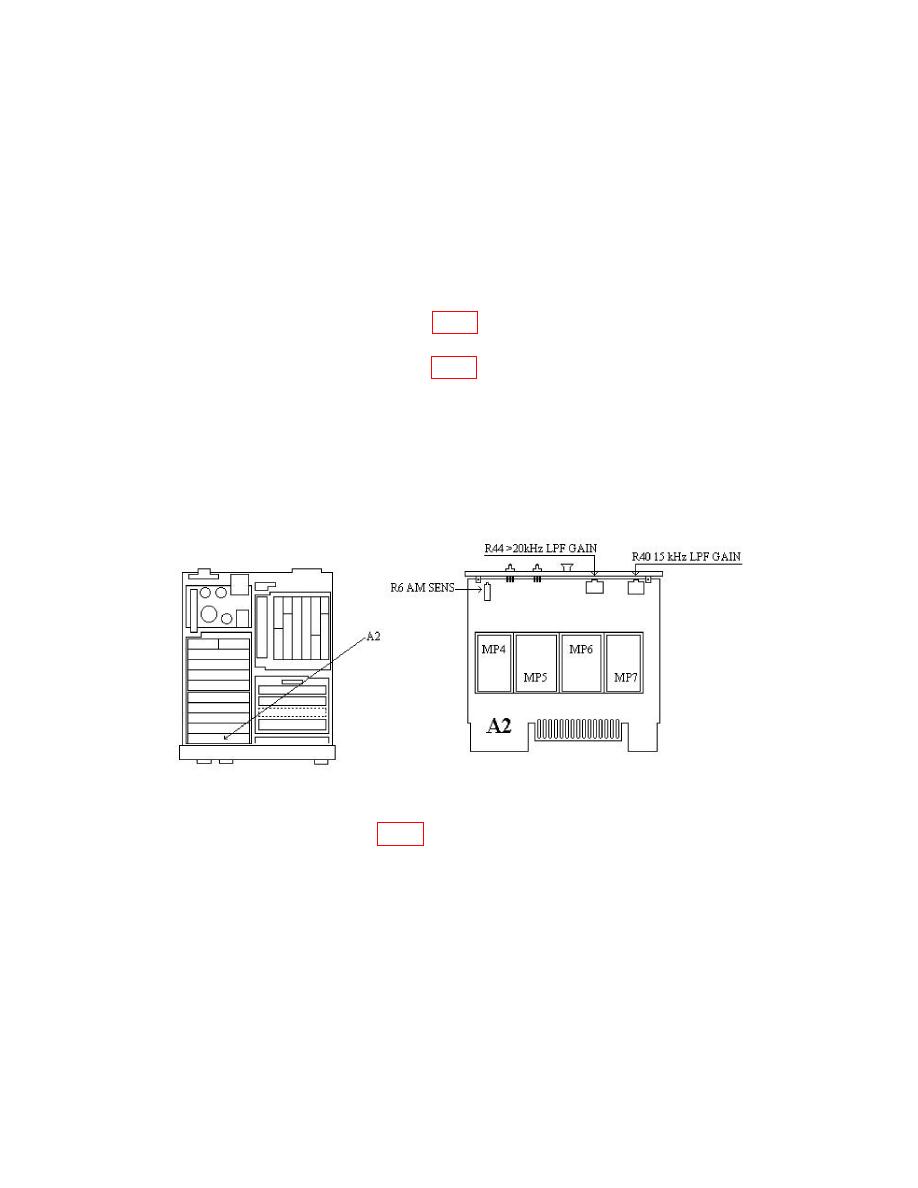

Figure 2. A2 board.
(11) Adjust
BLUE
(11)
