b. Adjustments.
Adjust R41 (fig. 1)
for overall output
levels and
C29 (fig 1)
for higher
frequency output levels for spectrum analyzer indications between -94 and -100 dBm for SN
1 through 364 and between -95 and -101 dBm for SN 635 and above (R).
a. Performance Check
(1)

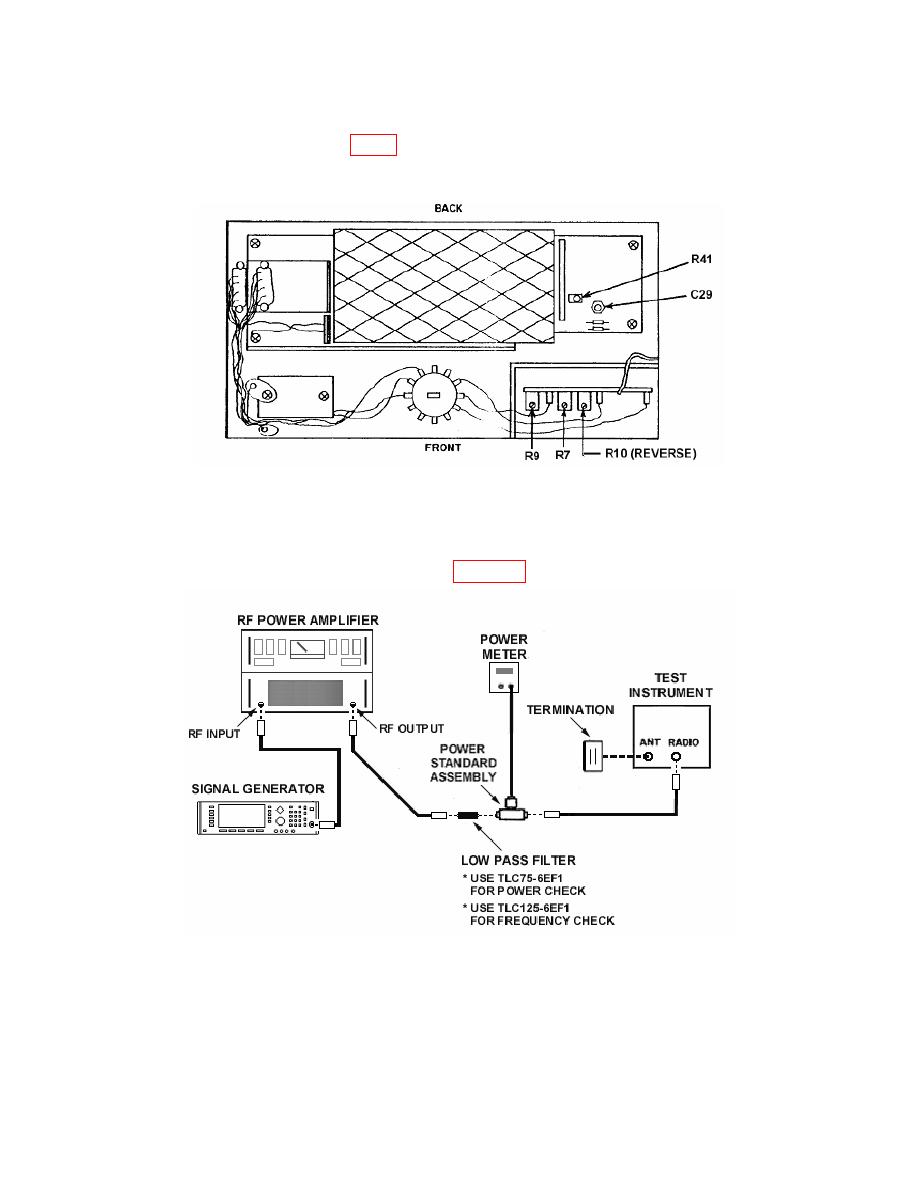

Figure 2. Power and frequency check equipment setup.
