b. Adjustments. No further adjustments can be made.
14. Pulse Modulation
a. Performance Check
(1) Connect equipment as shown in figure 7 below.

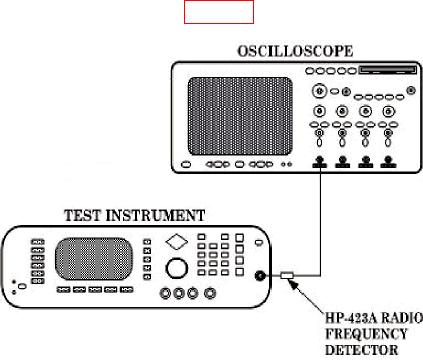

Figure 7. Pulse modulation hook-up.
(2) Press TI keys as listed in (a) through (k) below.
(a) SYSTEM, Rest.
(b) OUTPUT off.
(c) Level Control, L0, Edit L0, 1, 1, and dB.
(d) Frequency Control, F0, Edit F0, 5, and GHz.
(e) OUTPUT on.
(f) Modulation, Pulse, and On/Off to on.
(g) More, Config, Clock 40/10 to 40.
(h) Top Menu, More, Mode, press arrow key to highlight Single, Select, and
Previous Menu.
(i) Trigger, press arrow key to highlight Free Run, Select, and Previous Menu.
Previous Menu, Edit Period, 1, 0, uS, Edit Period.
(j)
(k) Edit Width, 5, uS, and Edit Width.
(3) Set oscilloscope as listed in (a) through (f) below.
(a) Vertical 1 Input 50
to on (lit).
