TB 9-6625-2332-40
(35) Record multimeter indication in table 7 under actual multimeter reading for
Vlow setting.
(36) Multiply the actual multimeter reading times the termination correction factor
and record the results in table 7.
(37) Verify that the value recorded in (36) above is within limits specified for the
Vlow setting.
(38) Set TI to the next Vlow setting listed in table 7 and repeat (35) through (37)
above.
(39) Repeat (38) above for the remaining Vlow settings listed in table 7.
Table 7. 9215 Negative Output Amplitude
Test
Multimeter indication X
instrument
Multimeter
Termination
termination correction
Vlow setting
indication
correction factor
Min
factor
Max
-5.0
-5.055
-4.945
-10.0
-10.105
-9.895
-15.0
-15.155
-14.845
(40) Press DISABLE pushbutton (9215 output module) to off (red light lit).
(41) Disconnect TI 9215 module OUTPUT from BNC tee adapter.
b. Adjustments. No adjustments can be made.
9. Period
a. Performance Check

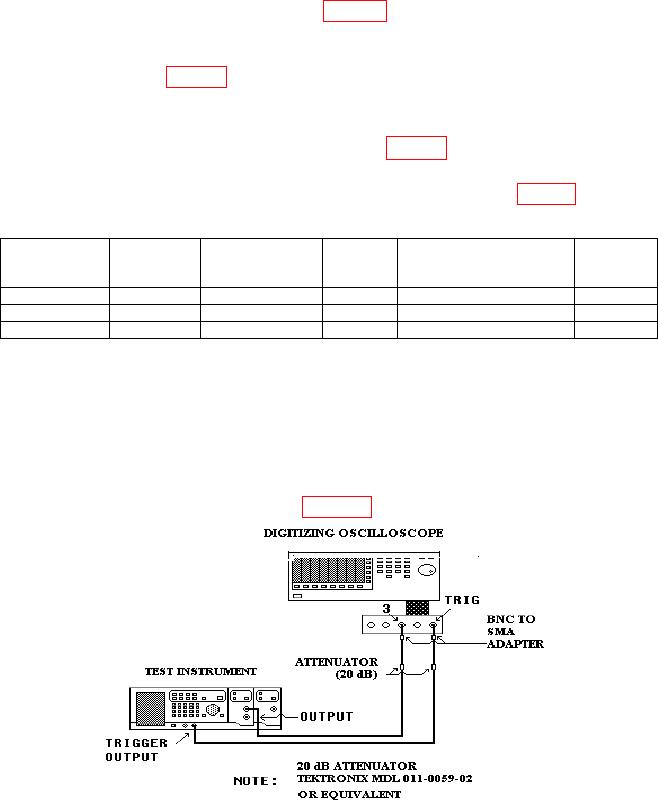

(1) Connect equipment as shown in figure 3 below.
Figure 3. Period.
