b. Select standard thermistor mount according to TI being calibrated.
c. Evaluate TI
for frequency range and
determine cardinal test point
frequencies from
standard thermistor mount chart selected in b above.
d. Set power meter No. 1 CALIBRATION FACTOR control to 100% and standardize
TI.
f. Energize equipment and allow 1 hour for warmup.
g. Prepare a test report for all thermistor mounts certified for system codes U10, U11,
and U12.

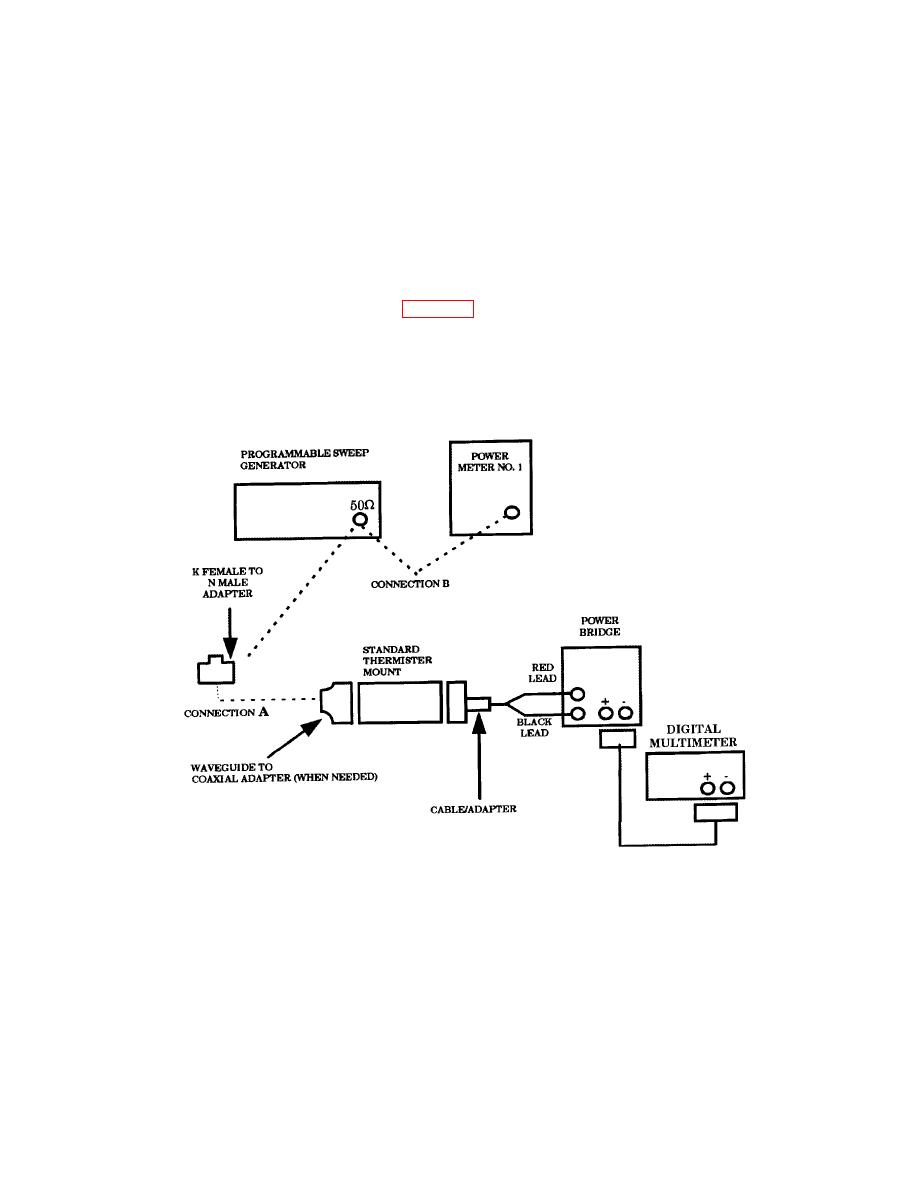

Figure 2. Thermistor mount/power sensor (10 to 40 GHz) - equipment setup.
8. Power Accuracy
a. Performance Check
cardinal test point frequency determined in 7c above.
