TB-9-6625-2011-35 Pulse Generator SG-1105/U and Hewlett-Packard Model 8013B Manual
Page Navigation
1
2
3
4
5
6
7
8
9
10
TB
9-6625-2011-35

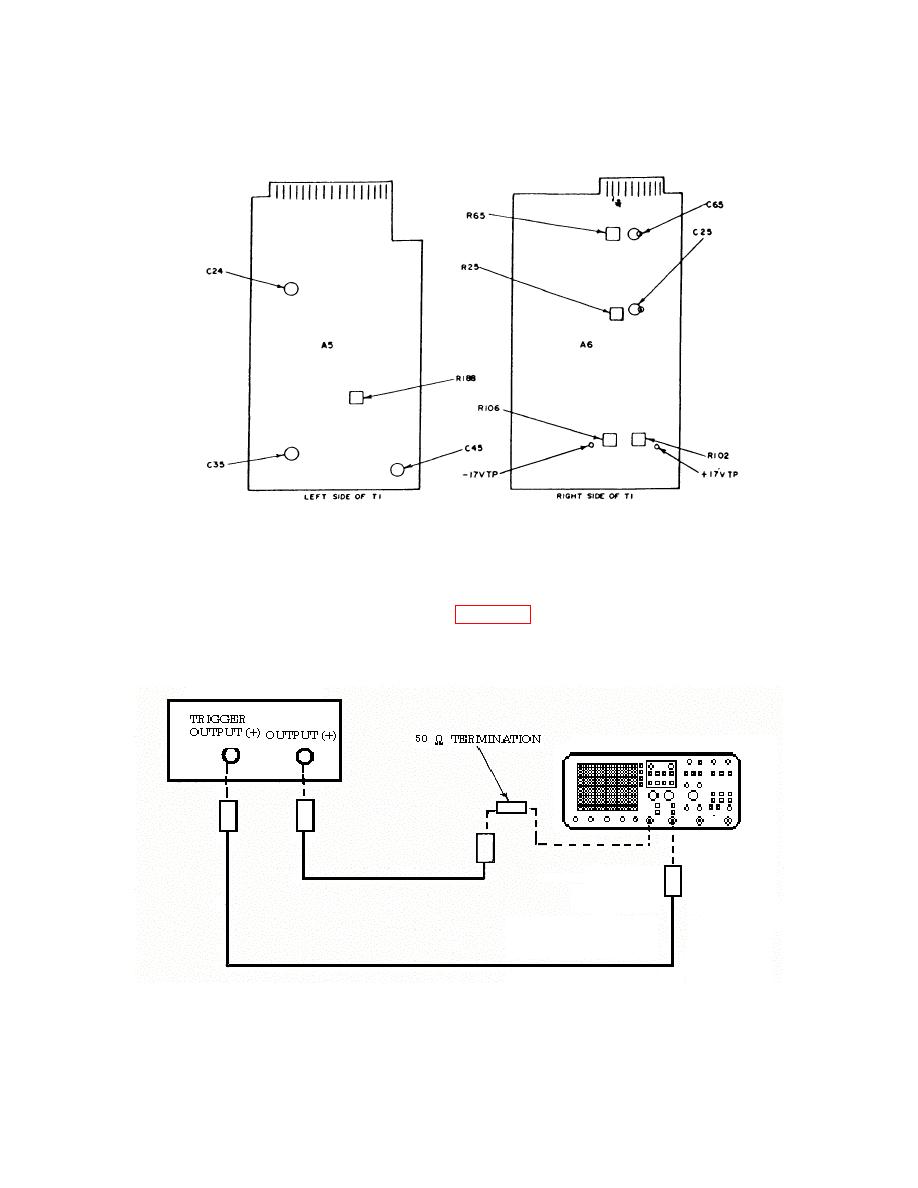

Figure
1.
Boards
A5
and
A6 -
adjustment
locations.
9.
Pulse
Delay
a. Performance Check
(1)
Connect
equipment as
shown
in
figure 2
and
set
oscilloscope
to trigger
off
channel
2.
Figure
2.
Pulse
delay
-
equipment
setup.
5
