TB 9-5985-314-24

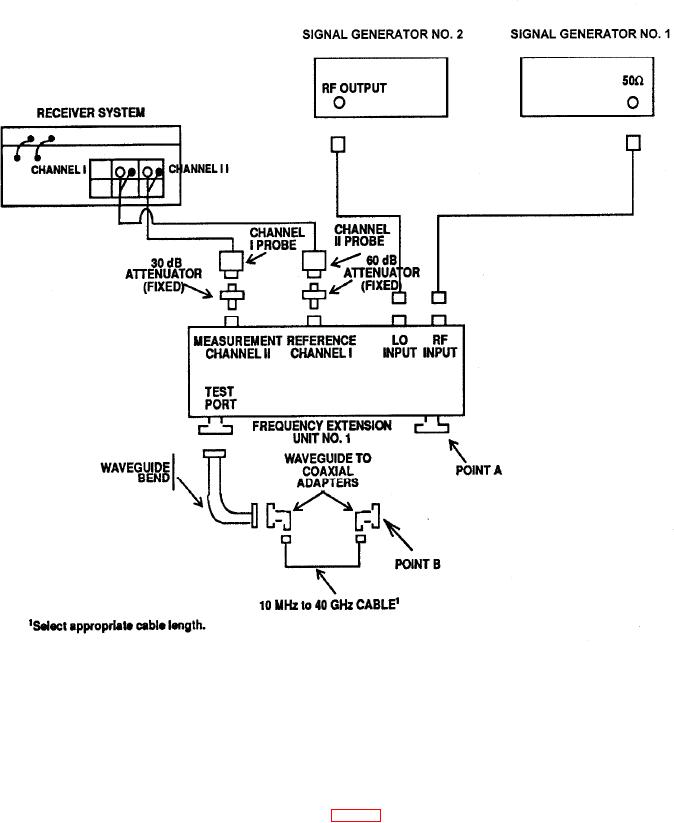

Figure 5. Power splitter measurement (18 to 26.5 GHz) - equipment setup.
NOTE
Use 15% SEARCH MODE on receiver system.
(26) Press receiver system frequency to 0.700 GHz.
(27) Connect POINT A to POINT B (fig. 5) and establish a 0.00 dB reference on
receiver system.
27
